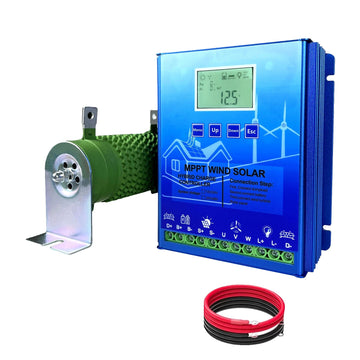

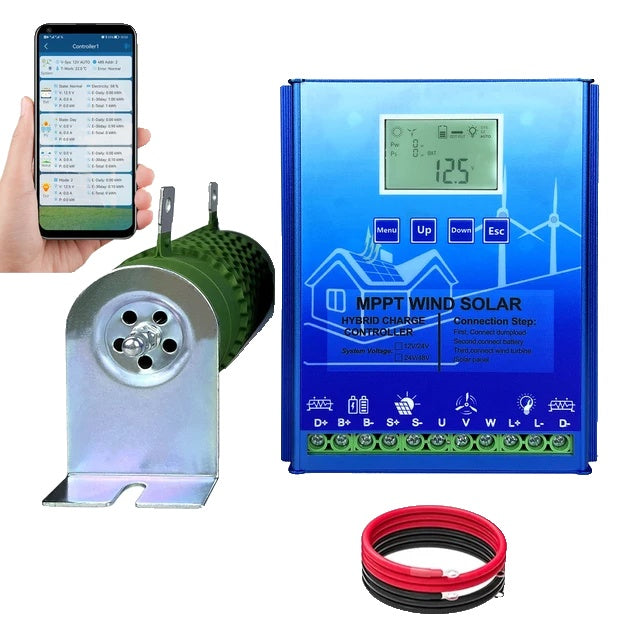

Hybrid Wind Solar Charge Controller, MPPT Technology, Bluetooth Connectivity
Op voorraad, klaar om te verzenden!
Regular price
4 467 kr
Sale price
4 467 kr
Regular price
Old price:
Save
Unit price
Tax included.
-
Receive between Dec 26 - Dec 30
-
90 day free returns
Hybrid Wind Solar Charge Controller, MPPT Technology, Bluetooth Connectivity
Additional information
Product Description
What makes this so special?
- Versatile Battery Types: Supports Lithium (Ternary Lithium, Lithium iron), Sealed (Lead-acid, GEL) battery types with adjustable voltage of 12V/24V/48V.
- LCD Display & Adjustable Parameters: LCD display provides real-time monitoring of voltage and current of wind, solar and load parameter. Adjustable parameters include over charge, low over discharge, low over discharge return.
- High Performance Chip Control: Automatically match with 12V/24V 24V/48V sealed battery voltage with high performance and stable chip control.
- Robust Built: The controller body is made of aluminum alloy material that offers excellent heat dissipation and stability for long term use.
Specifications:
- Battery Type: Sealed Lead-acid, GEL, Ternary Lithium, Lithium Iron
- Voltage: 12V, 24V, 48V
- Power: 2000W
- Rated Wind Power: 500-1000W
- Rated PV Power: 500-1000W
- Max Input Current: Wind Turbine ≤ 40A, Solar Panel ≤ 30A
- Max Input Voltage: Wind Turbine ≤ 80V, Solar Panel ≤ 55V
- Output Current: 20A
- Control Mode: Wind Generator MPPT Boost Charge, PWM Dump Load, PWM Over Current Limiting Function, Solar Power is PWM
- LCD Display: Voltage, Percentage of Battery Power, Current, Working Mode of Load, etc.
- Protection Type: Solar Reversed Charging Protection, Battery Open Circuit Protection, Battery Anti-Reverse Connection Protection Protection, Over Current and Over Voltage Auto Brake Protection, Over Load Protection, etc.
- Cooling Mode: Aluminium Profiles Heat Dissipation and Self-cooling
- Working Temperature/Relative Humidity: -25℃~+80℃/0~90%, Non-condensing
- Size: 167mm*145.5mm*61.8mm
- Weight: 2.1/2.35kg
