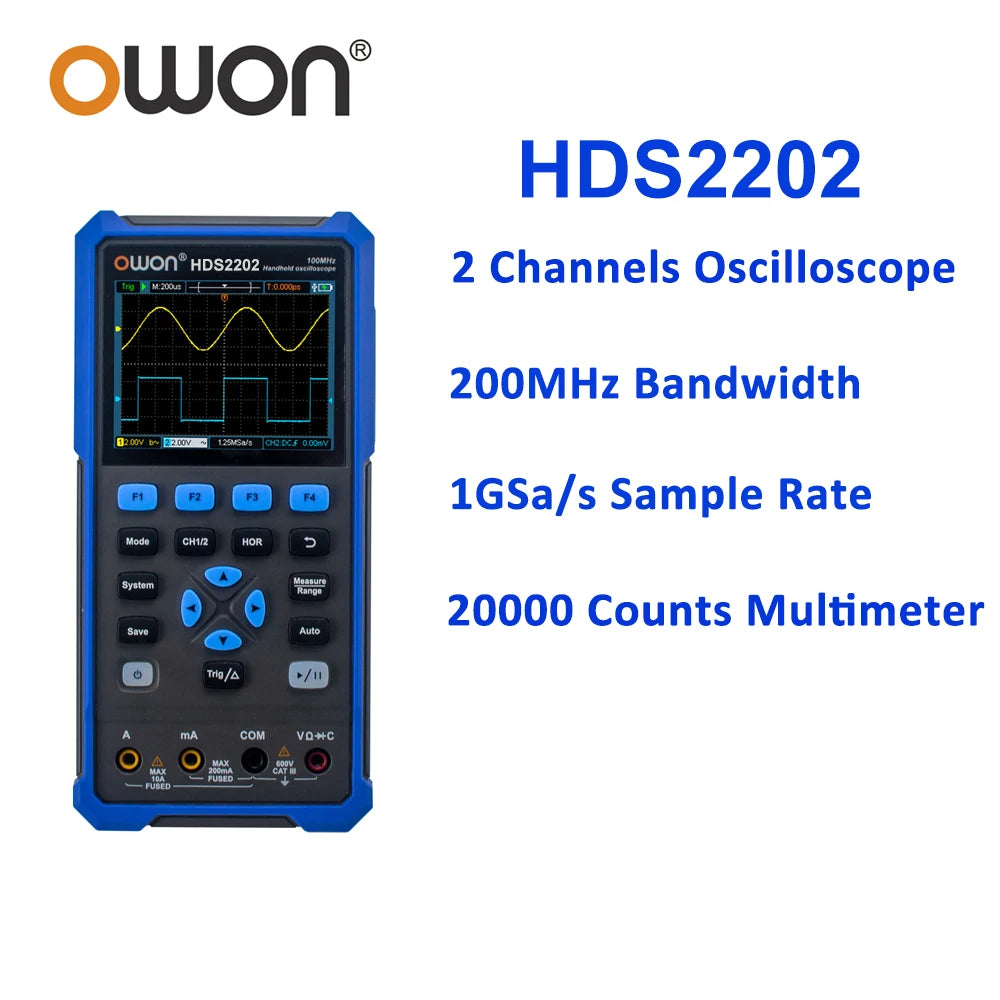

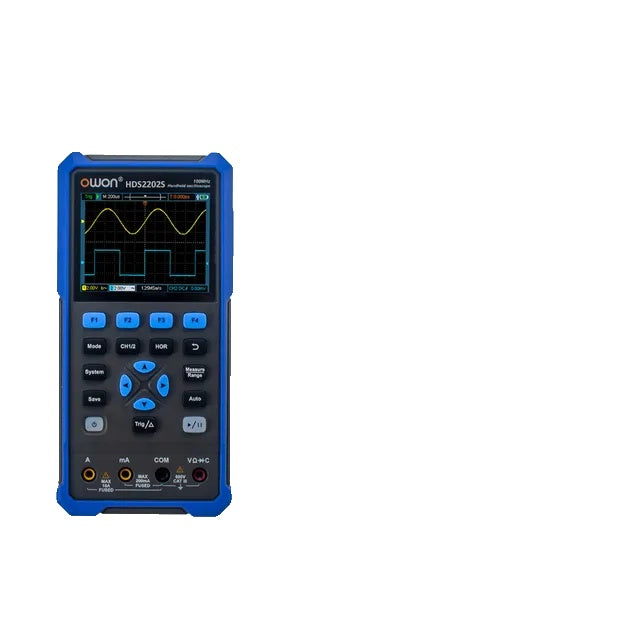

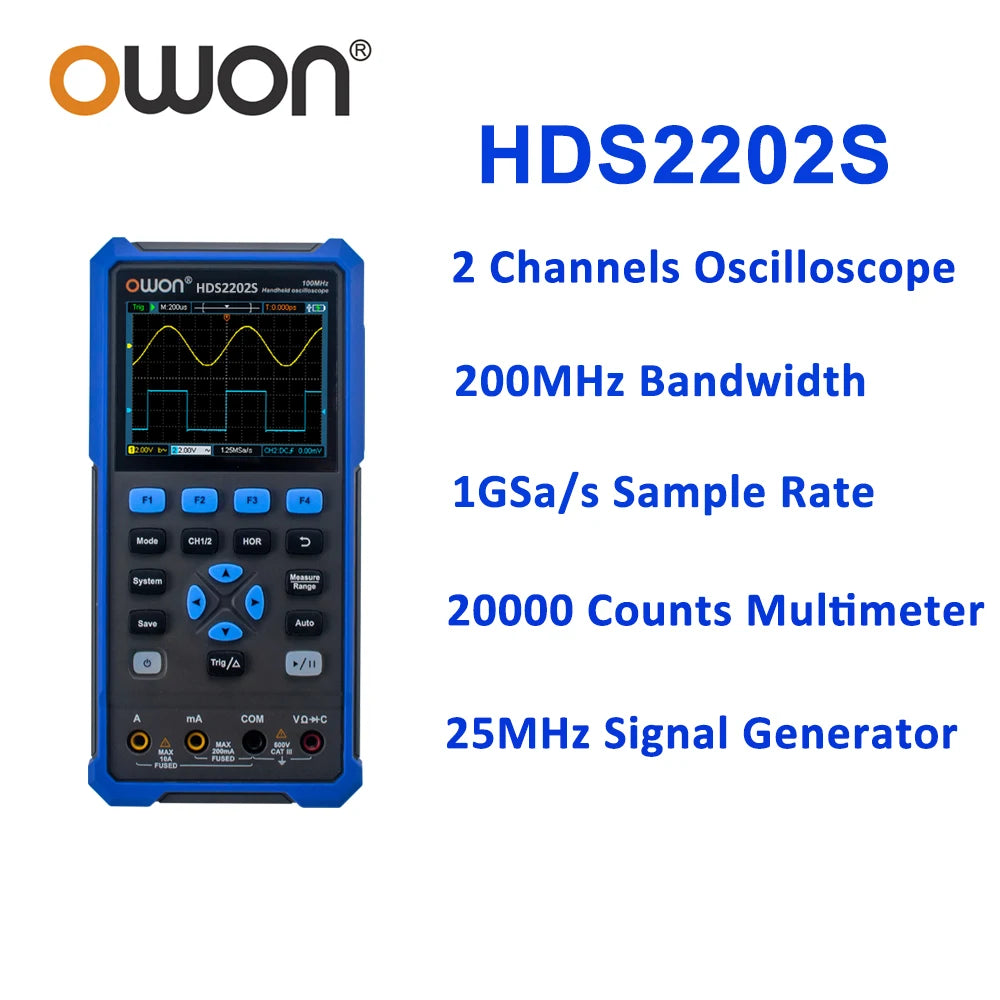

Handheld Oscilloscope, 200MHz, 1GSa/s

What makes this so special?

• High Sensitivity Oscilloscope: OWON 2CH HDS2202S Handheld Oscilloscope offers 200MHz bandwidth, 1GSa/s sample rate and/div vertical sensitivity, enabling users to capture small signals and accurately measure waveforms.
• Waveform Signal Generator: 25MHz waveform signal generator produces sine, square, triangle, pulse, ramp, noise and other waveforms, providing various test signals to test circuit performance.
• True RMS Multimeter: Built-in true RMS multimeter measures AC/DC voltage, resistance, capacitance, frequency, diode, continuity and current, helping you to accurately detect circuit problems.
• 5" Color LCD Screen: A 5-inch LCD screen displays digital waveforms and other information in a clear and vivid image, easy to observe and record measurement data.
• USB Connectivity: The HDS2202S oscilloscope supports plug-and-play USB connectivity with a PC, making it easier to save, print and share measurement data.

Specifications:

• Channels: 2
• Bandwidth: 200MHz
• Sample Rate: 1GSa/s
• Waveform Generator: 25MHz
• Display: 3.5” TFT Color LCD
• Input Impedance: 1MΩ/25pF
• Input Coupling: DC/AC/GND
• Vertical Sensitivity: 2mV - 10V/div
• Timebase Range: 5ns/div - 50s/div
• Trigger Type: Edge/Pulse/Video/Slope/Alternate
• Multimeter: True RMS
• Interface: USB 2.0
• Power Supply: Rechargeable Battery
• Dimensions: 92 x 200 x 35mm

With SupplySwap, upgrade your testing and measurement capabilities with the versatile OWON HDS2202S handheld oscilloscope. Explore our collection for more advanced equipment and accessories.
